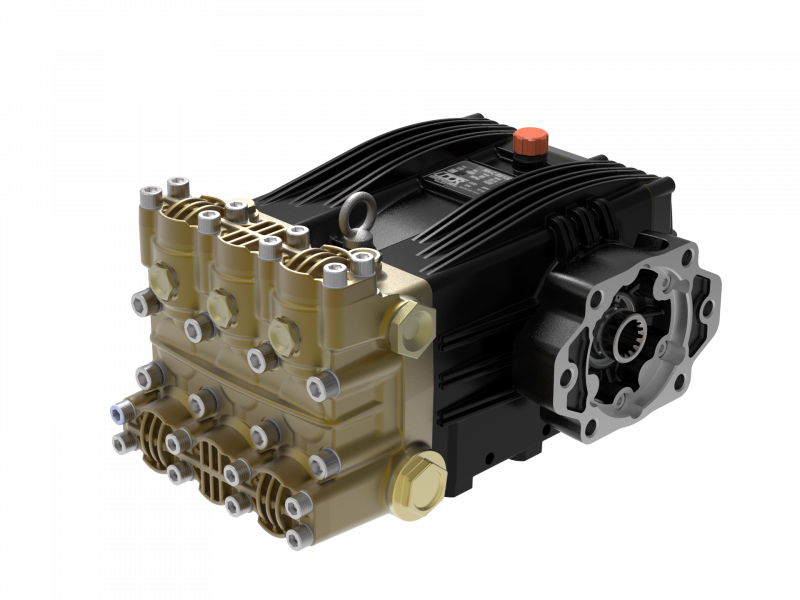

UDOR high pressure triplex pump, max. pressure 280 bar, flow rate 75 l/min, power 40.1 kW More info
| Max. pressure | 280 bar |
|---|---|
| Power | 40.1 kW |
| Flow rate | 75.0 l/min |
| Pump speed | 1000 rpm |
| Weight | 64.0 kg |
| Shaft | Hollow Shaft R MI - 14T 12/24 DP - SAE J744 C |
Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, triple sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pump with MI shaft type (hollow shaft) can be directly coupled to hydraulic motor.
All models of UDOR pumps are available with Left P.T.O. Shaft. Descriptions mention “-L”.
