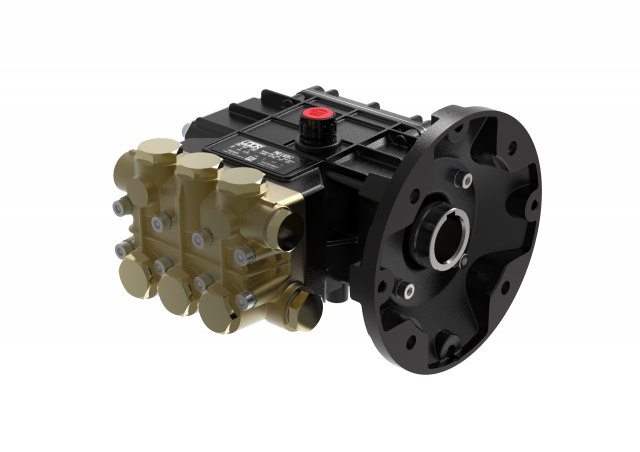

UDOR high pressure triplex pump, max. pressure 170 bar, flow rate 8 l/min, power 2.6 kW More info
| Max. pressure | 170 bar |
|---|---|
| Power | 2.6 kW |
| Flow rate | 8.0 l/min |
| Pump speed | 1450 rpm |
| Weight | 5.8 kg |
| Shaft | Hollow Shaft 28 mm |
Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
All models of PN Pumps are available with Aluminium Head for pressure up to 90 bar (1300 PSI).
All models of UDOR pumps are available with Left P.T.O. Shaft. Descriptions mention “-L”.
