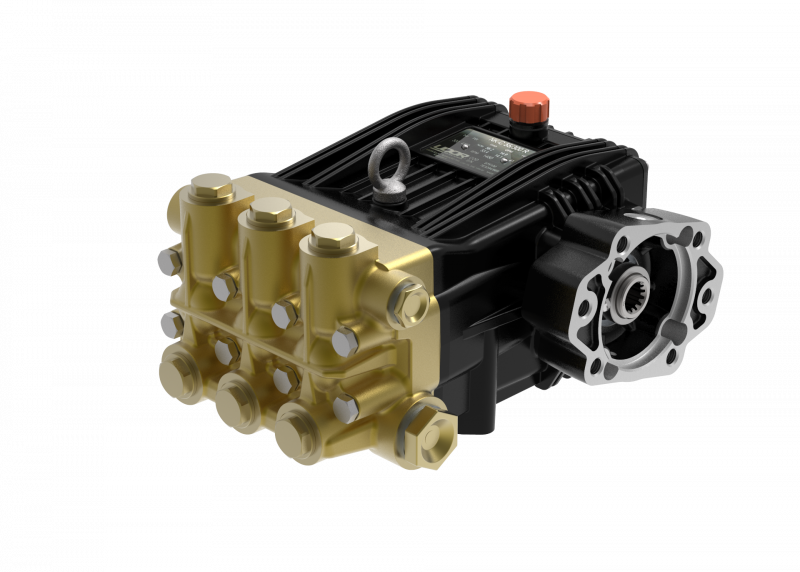

UDOR high pressure triplex pump, max. pressure 300 bar, flow rate 56.6 l/min, power 32.5 kW More info
| Max. pressure | 300 bar |
|---|---|
| Power | 32.5 kW |
| Flow rate | 56.6 l/min |
| Pump speed | 1750 rpm |
| Weight | 31.0 kg |
| Shaft | Hollow Shaft R MI - 13T 16/32 DP - SAE J744 B |
Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pump with MI shaft type (hollow shaft) can be directly coupled to hydraulic motor.
All models of UDOR pumps are available with Left P.T.O. Shaft. Descriptions mention “-L”.
