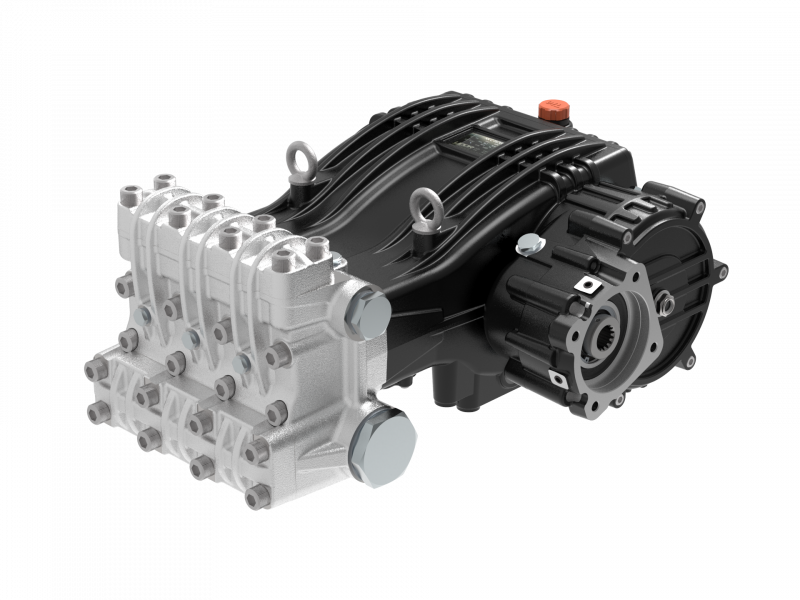

UDOR high pressure triplex pump, max. pressure 300 bar, flow rate 124.5 l/min, power 71.4 kW More info
| Max. pressure | 300 bar |
|---|---|
| Power | 71.4 kW |
| Flow rate | 124.5 l/min |
| Pump speed | 2200 rpm |
| Weight | 181.0 kg |
| Shaft | Hollow Shaft R MI - 14T 12/24 DP - SAE J744 C |
Reciprocating plunger pump, 3 solid ceramic plungers, nickel plated spheroidal cast-iron head, aluminum crankcase with cataphoresis coating, triple sealing system, hardened steel crankshaft, oversize roller/ball bearings, gearbox directly connected to the pump.
The pump with MI shaft type (hollow shaft) can be directly coupled to hydraulic motor.
All models of UDOR pumps are available with Left P.T.O. Shaft. Descriptions mention “-L”.
