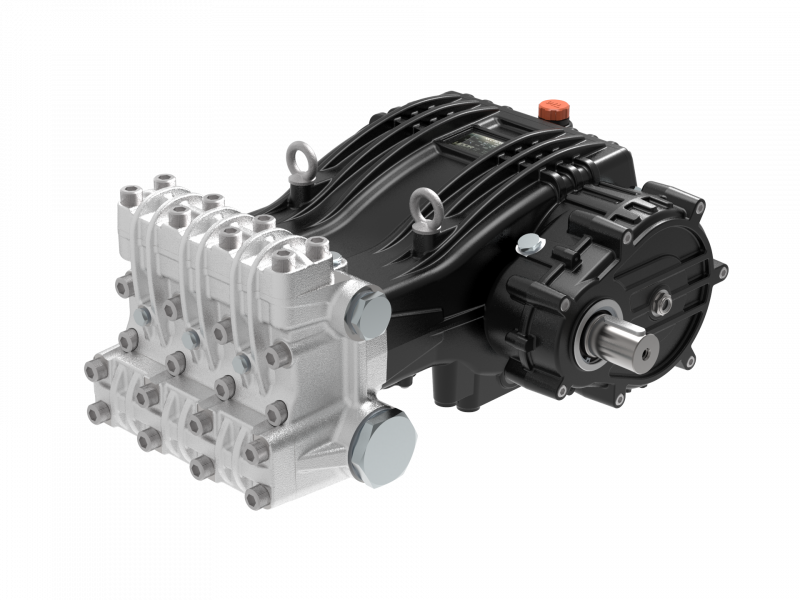

UDOR high pressure triplex pump, max. pressure 240 bar, flow rate 162.5 l/min, power 74.5 kW More info
| Max. pressure | 240 bar |
|---|---|
| Power | 74.5 kW |
| Flow rate | 162.5 l/min |
| Pump speed | 1800 rpm |
| Weight | 181.0 kg |
| Shaft | MALE Shaft 50 mm |
Reciprocating plunger pump, 3 solid ceramic plungers, nickel plated spheroidal cast-iron head, aluminum crankcase with cataphoresis coating, triple sealing system, hardened steel crankshaft, oversize roller/ball bearings, gearbox directly connected to the pump.
All models of UDOR pumps are available with Left P.T.O. Shaft. Descriptions mention “-L”.
