Hughes Pumps high pressure triplex pump, max. pressure 2600 bar, flow rate 10.3 l/min, power 50 kW More info
Product code / ART00671
Availability / Upon request
| Max. pressure | 2600 bar |
|---|---|
| Power | 50 kW |
| Flow rate | 10.3 l/min |

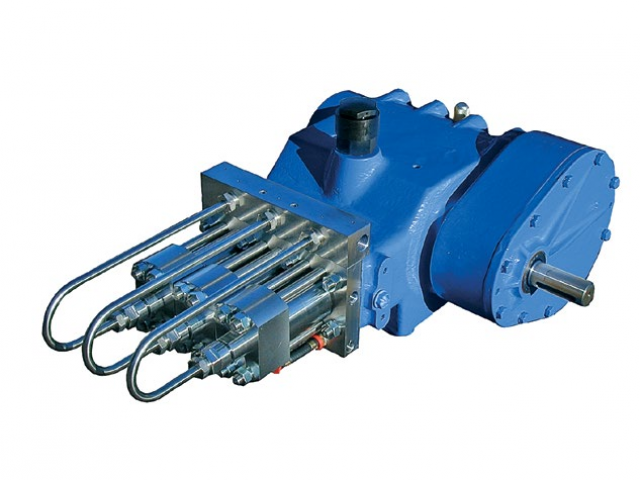

The Ultrabar 10 model offers Ultra High Pressure from one of the most compact pumps on the market.
The close coupled, gear driven power end has splash lubrication and oil cooling. SAE adaptor housings are available enabling the pump to be flange mounted to a diesel engine flywheel housing or electric motor ensuring extremely compact, perfectly aligned installations and enclosing all moving parts.
The Ultrabar range of pumps include design features that allow seals and valves to be monitored without tools and maintenance on individual cylinders.
This improved design is capable of Ultra High Pressure with outstanding seal, plunger and valve life.
